Warehouse RFID for receiving and cycle counts

Turn receiving, put-away and cycle counts into faster, more observable warehouse workflows.

Request a project quoteFind a suitable configuration
FIELD BRIEF01 - 10Problem → workflow → proof → deployment

01 / THE OPERATING PROBLEM

Make the next
right action visible.

Warehouse teams need speed without sacrificing location accuracy. The hard part is not buying a reader; it is controlling where reads become business events.

RFID is useful when a physical read is connected to a clear business decision.

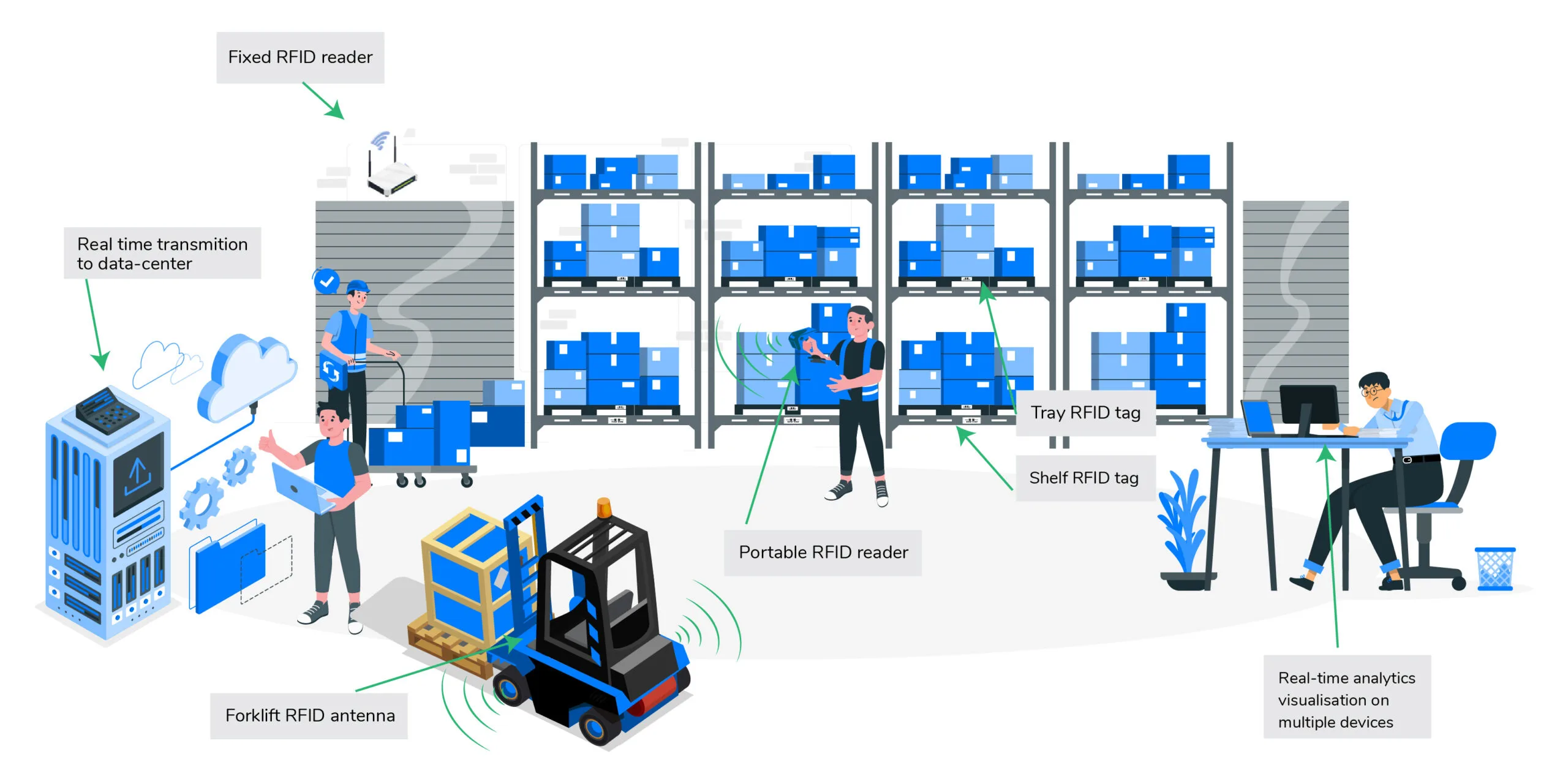

Illustrated warehouse with shelves, pallets and RFID reader, tag and data-system callouts
Illustrative warehouse system map. Reader placement, tag choice, event rules and software handoff depend on the site and workflow.

FIELD VIEW / WAREHOUSE EVENTS

Connect the zone
to the next action.

A warehouse RFID design links the physical handoff to the event the operating system needs to receive and review.

  • Map receiving, staging and storage handoffs
  • Connect readers, tags and event context
  • Route confirmed reads to the warehouse system

02 / THE RFID WORKFLOW

Four moments.
One connected record.

01

Apply or print tags at receiving

Define the identity and the point where it enters the workflow.

02

Validate the read zone at dock or aisle

Capture a repeatable event with enough context to trust the result.

03

Capture bulk reads with handheld or fixed readers

Capture a repeatable event with enough context to trust the result.

04

Post confirmed events to the WMS

Route the confirmed event to the system and person who acts on it.

03 / OPERATING SCOPE

Start with the
event, not the device.

A useful solution brief makes the item, event, system handoff and evidence visible before a configuration is selected.

INPUT / ITEM

Inbound cartons, pallets, returnable units and staging locations moving through controlled warehouse handoffs.

EVENT TO PROVE

Receipt, transfer, count, load or return event bounded by a dock, aisle, station or operator action.

SYSTEM HANDOFF

A normalized movement event to WMS with location, direction, time and exception information.

ACCEPTANCE EVIDENCE

A pilot that includes normal movements, nearby activity, mixed loads, failed reads and WMS recovery.

FIELD QUESTIONS

  • Map the handoff before selecting a reader or portal layout.
  • Use actual rack geometry, packaging and operator routes in the test.
  • Separate incidental reads from the movement that should post to WMS.
  • Freeze a configuration baseline before replicating it at another dock or site.
Relevant service Planning guide

04 / WAREHOUSE EVENT REVIEW

Give each read
an accountable meaning.

A reader observation is only useful when the warehouse can decide what it means. Define the movement, expected state, exception owner and evidence for each handoff before treating a read as a WMS transaction.

Design the warehouse event before configuring the zone

Operating momentBusiness event ruleException pathAcceptance evidence
Receiving at the dockA load-unit identity, dock location, intended direction and expected receipt state form a receipt candidate.Route an unexpected, duplicate, partial or delayed observation to receiving review before inventory is updated.Run normal inbound, staged-nearby, mixed-load and partial-pass samples; retain raw reads, normalized events, WMS responses and recovery actions.
Cycle count in an aisleThe count route, item or load-unit scope, location and review window define which observations belong to the count.Keep an observed-versus-expected difference visible for recount, investigation and approved adjustment rather than treating it as an automatic stock change.Test the normal route, dense storage, repeated scans and missing identity handling, then reconcile the result against the count record.
Load or dispatch verificationThe assigned shipment, controlled lane, movement direction and time window determine when an observation becomes a load-verification candidate.Hold unexpected, missing, late or reverse-flow identities for the shipment owner and preserve the physical observation for diagnosis.Exercise correct and incorrect loads, adjacent staging, reversals and retry behavior; confirm the final shipment state and operator recovery path.

INDUSTRY CONTEXTS

Apply the workflow
to the operating setting.

The solution stays the same operating route. These context briefs bring the material, environment, workflow and proof point that change the first configuration review into one place.

01

Warehouse and logistics

Receiving, cycle counts, dock events and returnable assets.

MATERIALS / UNITS

Cartons, pallets, returnable units, rack locations and dock-stage records.

PRIMARY RISK

Mixed loads, nearby movement and a read zone that is wider than the intended handoff.

PROOF POINT

Run receiving or cycle-count samples through normal operator movement and reconcile the result to WMS.

CONTEXT WORKFLOW

  1. 01
    Receive and identify

    Assign the item or load-unit identity at the first controlled handoff and keep the expected quantity visible.

  2. 02
    Confirm the movement

    Use the selected read point and operator action to distinguish receiving, put-away, transfer and dispatch.

  3. 03
    Reconcile the exception

    Route missing, duplicate or unexpected identities to a person before changing the inventory or custody record.

  4. 04
    Post the handoff

    Send the accepted movement, location and time to WMS with a supportable retry and recovery path.

STARTING COMPONENTS

  • Carton, pallet or returnable-unit tags
  • Handheld reader for counts and exceptions
  • Fixed reader or portal for a bounded dock event
  • Directional antenna, trigger and WMS connector

SYSTEM HANDOFF

Warehouse events should post to WMS only after identity, location, movement and exception rules have been applied.

Open the planning guide Open detailed industry context
02

Food and beverage

Ingredient, packaging, inventory and movement workflows with application-specific tag and hygiene checks.

MATERIALS / UNITS

Cases, reusable containers, ingredients, storage zones and receiving records.

PRIMARY RISK

Moisture, cold areas, packaging variation and a process event without a clear unit of measure.

PROOF POINT

Validate one receiving or reusable-container loop with material, temperature and exception conditions represented.

CONTEXT WORKFLOW

  1. 01
    Identify the receiving unit

    Define whether the event concerns a case, pallet, ingredient, container or another measurable unit.

  2. 02
    Check the material context

    Test moisture, cold areas, packaging variation and placement with the actual receiving or storage routine.

  3. 03
    Reconcile the receipt

    Compare the observed identity and quantity with the expected record and make exceptions reviewable.

  4. 04
    Release or return

    Send the accepted receipt, hold or return state to the responsible inventory or logistics workflow.

STARTING COMPONENTS

  • Moisture- and packaging-aware tags
  • Handheld reader for receiving and count work
  • Fixed read point for controlled staging
  • WMS, inventory or logistics connector

SYSTEM HANDOFF

Food and beverage workflows should preserve unit, quantity context, location, time and hold or return status in the receiving record.

Open the planning guide Open detailed industry context

APPLICATION COVERAGE

Map the workflow
to the point of work.

These application briefs consolidate the previously separate solution and industry classifications under this operating workflow. Detailed field briefs add a page-specific workflow and validation plan where the evidence and visual scope are ready.

01

Food and beverage inventory

Capture receiving, storage and issue events for cases, ingredients or reusable units in a bounded operating workflow.

FIRST REVIEW

Represent moisture, cold, packaging variation, hygiene routines and the unit of measure in the first sample test.

Open detailed field brief
02

Warehouse inventory

Use controlled receiving, transfer and count events to make pallet, carton and location status reviewable in the warehouse system.

FIRST REVIEW

Bound the dock or aisle read zone, run mixed-load samples and agree how unexpected observations are reconciled.

Open detailed field brief
04

Dock-door verification

Verify a defined inbound or outbound load at the dock without confusing adjacent staging or reverse movement with the intended event.

FIRST REVIEW

Test lane geometry, trigger logic, direction, nearby material and recovery behavior for partial or unexpected loads.

Open detailed field brief
05

Cold-chain goods management

Apply a controlled receiving, storage and movement workflow to goods handled in cold or moisture-prone environments.

FIRST REVIEW

Test the item and packaging under actual environmental conditions, and keep handling or condition decisions with the responsible process owner.

Open detailed field brief

05 / THE SYSTEM

Build around
the point of work.

Start with the read event and its purpose. Then select the tag, reader, antenna and software that support that event in the real environment.

01

Rugged UHF handhelds

Specified around the item, environment and operating step.

02

Fixed reader and directional antennas

Specified around the item, environment and operating step.

03

On-metal or general-purpose labels

Specified around the item, environment and operating step.

04

Edge middleware or API connector

Specified around the item, environment and operating step.

06 / SOFTWARE & INTERFACES

Make the read
mean something.

Supports WMS receiving, inventory adjustment, location transfer and exception workflows through REST, webhooks or an integration service.

Learn more
EVENT CONTRACTv1.0
epc3008 33B2 ...
readerDOCK_02 / ANT_04
locationRECEIVING / A-12
nextPOST TO WMS

07 / TEST METHOD

Measure the
uncertainty.

We establish a baseline with your real carton mix, rack geometry, tag orientation and target throughput rather than relying on open-air range figures.

  • Representative materials and item mix
  • Read range, speed and false-read checks
  • Operator workflow and exception path

08 / DEPLOYMENT

Start with
one proven zone.

Map read zones, configure power and session settings, pilot one process and publish an operator playbook before site-wide deployment.

01 Pilot02 Tune03 Train04 Scale

09 / WHAT GOOD LOOKS LIKE

Evidence your
team can use.

More dependable warehouse visibility with a rollout plan built around measured read behavior and the customer system of record.

Request a project quote

10 / FAQ

Questions worth
asking early.

Metal racks can create reflections and read zones that are too broad. Antenna direction, power, tag choice and pilot testing are all part of the design.

Yes. We document the site profile, configuration baseline, training checklist and acceptance test so a proven design can be replicated.

RFIDBRIDGE / NEXT STEP

Ready to test
the real thing?

Bring a representative item, a read target and the system that should receive the event.
